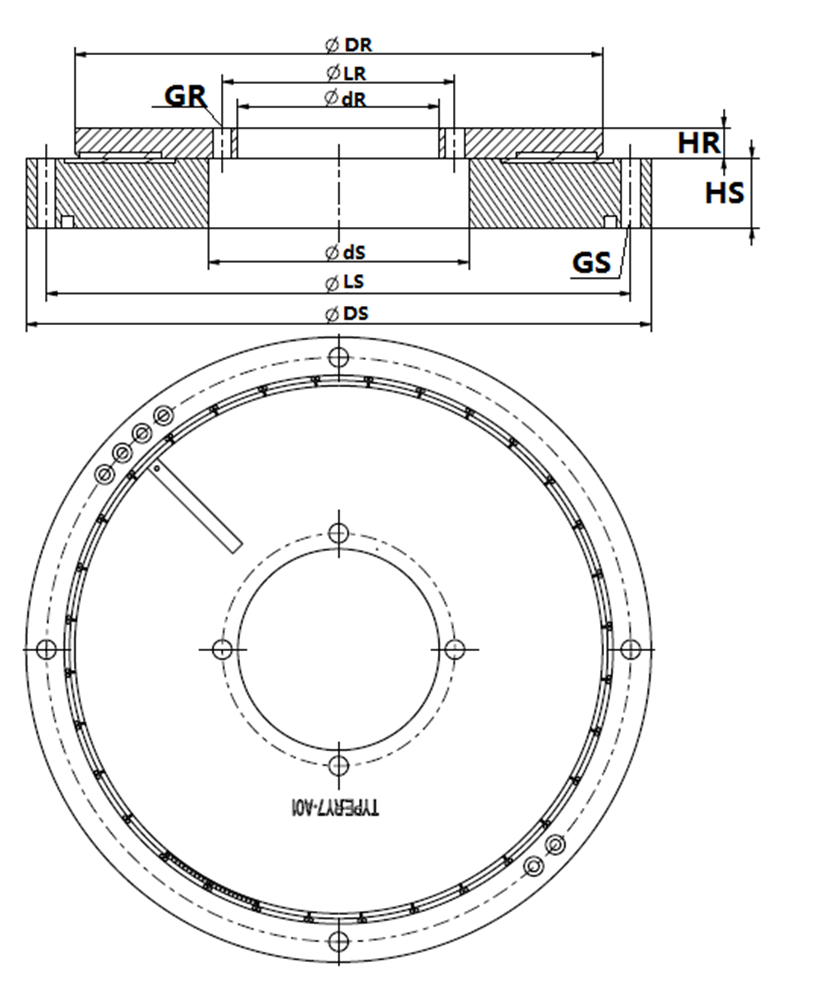

型號 (增量式) | 定 子 | 轉 子 | 安裝 氣隙 | 精度等級 | ||||||||
DS | LS | dS | GS | HS | DR | LR | dR | GR | HR | h | ||
RY2/360 | 58 | 52 | 20 | 4×φ2.5 | 5 | 42 | 15 | 8 | 4×φ2.5 | 5 | 0.15～0.3 | ±40″ |
RY3/360 | 78 | 70 | 26 | 4×φ3.5 | 5 | 58 | 18 | 12 | 4×φ3.5 | 5 | 0.15～0.3 | ±20″ |
RY4/360 | 100 | 92 | 36 | 4×φ3.5 | 7 | 80 | 28 | 22 | 4×φ3.5 | 7 | 0.15～0.3 | ±7″ |
RY5/360 | 126 | 118 | 56 | 4×φ3.5 | 7 | 104.5 | 36 | 28 | 4×φ3.5 | 7 | 0.15～0.3 | ±6″ |
RY6/720 | 156 | 148 | 68 | 4×φ3.5 | 8 | 133 | 58 | 48 | 4×φ3.5 | 8 | 0.15～0.3 | ±4″ |
RY7/720 | 180 | 168 | 76 | 4×φ5.5 | 8 | 151 | 65 | 54 | 4×φ5.5 | 8 | 0.15～0.3 | ±3″ |
RY8/720 | 203 | 191 | 96 | 4×φ5.5 | 8 | 172 | 80 | 66 | 4×φ5.5 | 8 | 0.15～0.3 | ±3″ |
RY9/720 | 224 | 210 | 106 | 4×φ5.5 | 10 | 191 | 90 | 76 | 4×φ5.5 | 10 | 0.15～0.3 | ±2″ |
RY12/720 | 302 | 287 | 116 | 4×φ6.5 | 12 | 264 | 100 | 86 | 4×φ6.5 | 12 | 0.15～0.3 | ±1″ |
